TOA TS-682L Delegate Unit with Long Microphone in Bangladesh
| Power Source | 36 V DC, 30 mA or less (supplied from the Central Unit TS-680) |
|---|---|
| Output | Headphone/Recording: 32 Ω (headphone)/10 kΩ, -20 dB* (recording), unbalanced, mini jack (with Volume control) Internal speaker: 130 Ω, 200 mW (with Volume control) |
| Control | Talk Key: Microphone, speaker on-off control by talk key Volume control: Headphone output and internal speaker volume adjustable |
| Microphone Unit (Accessory) | Electret Condenser Microphone Directivity: Unidirectional Impedance: 1.8kΩ Sensitivity: -37dB (1kHz 0dB = 1V/Pa) Frequency Response: 100Hz – 13 kHz Length: 518mm Weight: 105g (0.23 lb) |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | ABS resin, black, paint |
| Dimensions | 145.3 (W) × 70.7 (H) × 150.5 (D) mm (5.72″ × 2.78″ × 5.93″) (Excluding Microphone Unit) |
| Weight | 800 g (1.76 lb) (Excluding Microphone Unit) |
| Accessory | Long Microphone Unit x 1 |
| Option | Extension cord: YR-780-2M, YR-780-10M |

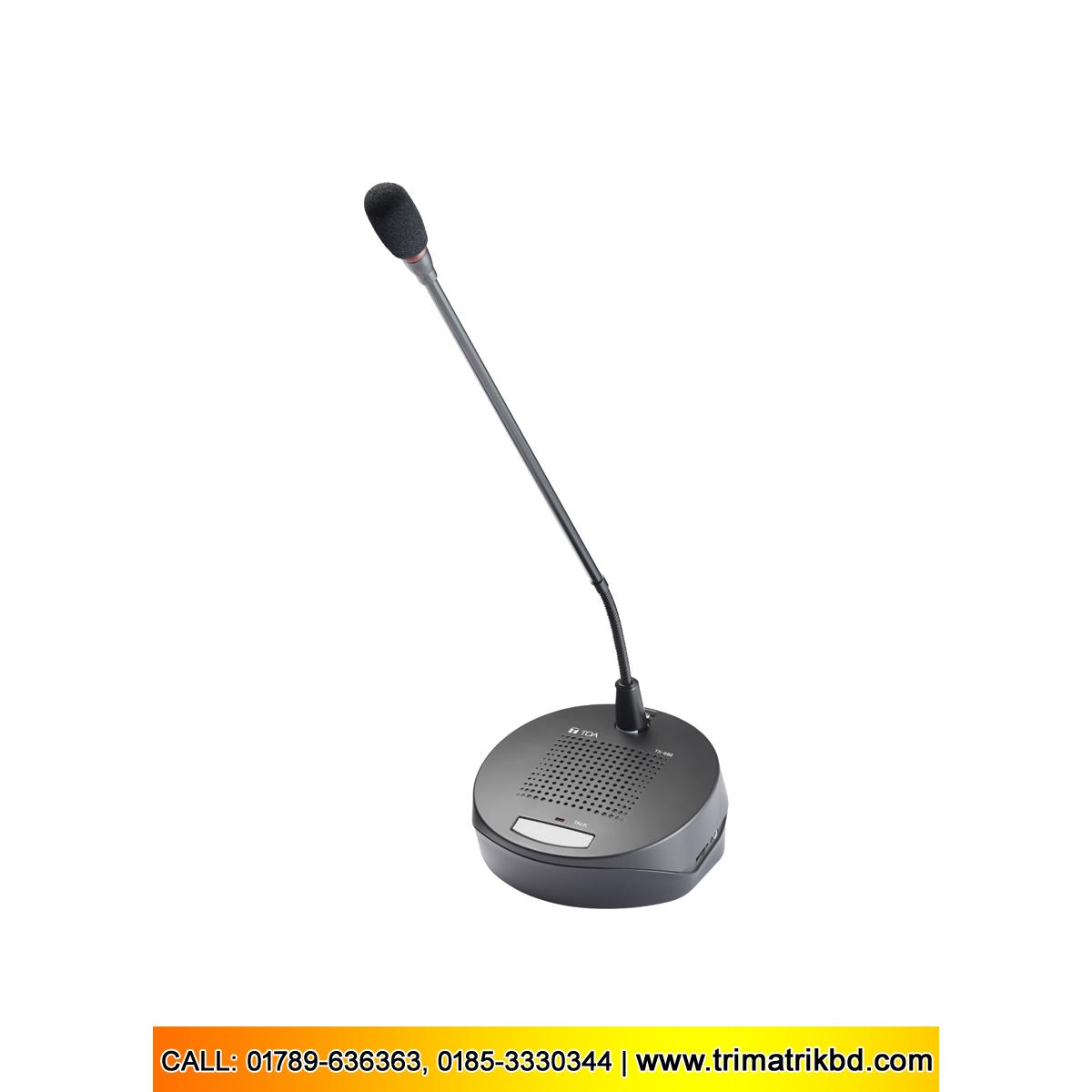

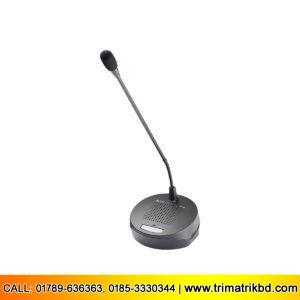

TOA TS-682L Bangladesh
The TS-682L is a Delegate unit of the TOA conference system, TS-680 Series of which compact and lightweight design makes it easy to install and store. Placing the talk key in ON position permits speech and disable the speaker to prevent feedback. If the talk key is placed in the OFF position, the microphone cannot be used but the speaker is turned on, allowing voices from other conference units to be monitored. And the TS-682L Delegate Unit comes with a long microphone as a standard accessory.
