TOA TZ-S60W

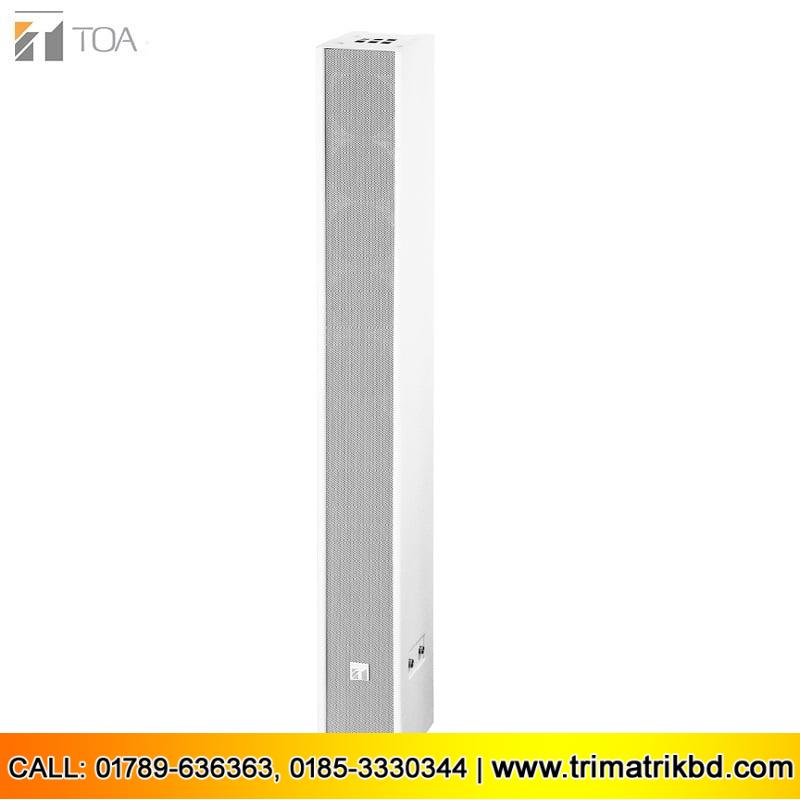

TOA TZ-S60W Slim Array Speaker

TOA TZ-S60W Slim Array Speaker

TOA TZ-S60W Slim Array Speaker, equipped with 9 vertically arrayed 8cm speaker units, delivers high clarity sound with a 90° horizontal x 0° vertical directivity control. This feature enables it to project clear sound even in rooms with reverberation problem. Two TZ-S60W can be stacked to improve sound transmission distance and the vertical coverage area. For installation flexibility, both low impedance and high impedance is available by a rotary switch.

সমগ্র দেশজুড়ে সার্ভিস

  • Genuine Products
  • One Year Warranty
Call for Update Price & Product Availability

01711-766062, 01711-461346, 01789-636363

Description

TOA TZ-S60W Slim Array Speaker price in Bangladesh

EnclosureBass Reflex Type
Max. Input Power
(Low Impedance)
120 W (Continuous pink noise)
Rated Input
(High Impedance)
60 W
Rated ImpedanceLow Impedance: 8Ω
100 V line: 167 Ω (60 W), 330 Ω (30 W), 500 Ω (20 W), 1 kΩ (10 W): Selectable
Sensitivity95 dB (1 W, 1 m)
Frequency Response180 Hz – 15,000 Hz
Speaker Component8 cm (3″) cone-type × 9
ConnectionPush-In Terminals
Operating Temperature-10 °C – +50 °C
Directivity AngleHorizontal: 90° / Vertical: 0°
Impedance ChangeRotary Switch (Selectable)
FinishEnclosure: MDF, Wet Paint, White
Punched Net: SECC, Wet Paint, White
Wall Bracket: SECC, Wet Paint, White
Side Panel: SECC, Wet Paint, White
Metal Cover: SECC, Wet Paint, White
Dimensions100 (W) × 883 (H) × 130 (D) mm
Weight8.2 kg (unit only)
AccessorySpeaker Bracket x 1, Joint Bracket x 1, Wall Bracket x 1, Fixing Bolt (M5 x 60) x 1, Hexagon Bolt (M6 x 12) (with plain washer and spring washer) x 2, Machine Screw (M5 x 15) (with plain washer and spring washer) x 4
Option TZ-S60WHY-S60W: Side Stack Bracket x 2, Rear Stack Bracket x 1
